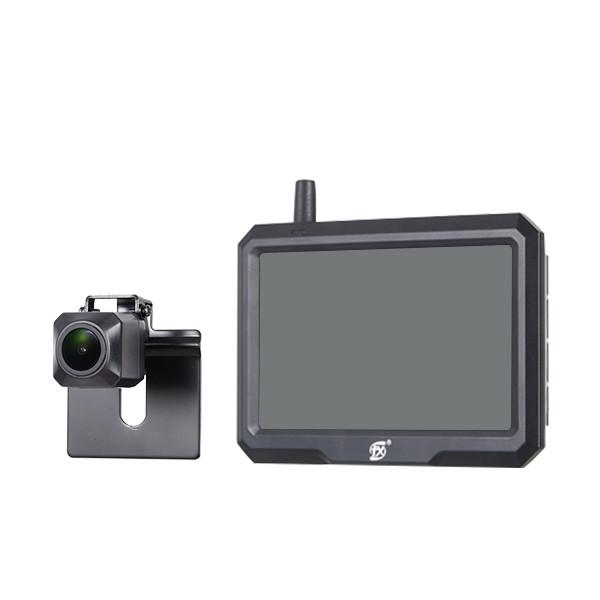

IP68 WIFI Vehicle Rearview Camera 5 Inch Screen Set Black Color
WIFI Rearview Backup Camera 5 Inch Screen Set 720P Transmitter
Black Color
Features:
1. The smallest 2.4G wireless rear view integrated camera in world,
volume is 27*25*25mm
2. Backup camera is designed with IP68 waterproof, Working
temperature: -4°F-149°F, no need to worry driving at raining day
and extreme weather.
3. Easy to install: two way of bracket to install camera, more
convenient
4. Camera come with good low night vision:110 degree horizontal
angle.more safety to drive at darkness and daytime.Illumination can
be as low as 0.1LUX.
5. 5 Inch TFT color screen, brightness: 500cd/m Resolution is
800*480
6. Power on response time is 1.5MS, latency time is 70 ms, video
will be appeared quickly on monitor.
7. Two position to install monitor: located on dashboard or on
windshield. Install separately, when need to connect camera, just
pair the code.
8. Transmissor prow is 16DBM,RX sensitivity is -90DBM
9. Monitor has variety of display way: Mirror, normal image and up,
down, left, right image flip for more safe parking.
10. FCC CE ROHS is available.
Specification:
Camera
| IP Class(Protection type): | IP68,waterproof |
| Image Sensor: | 1/3” HD CMOS |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| TV System: | NTSC/PAL |
| Resolution: | 550TV Line |
| Minimum Illumination: | 0 Lux[IR ON] |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| View angle: | 110° |
| Power Supply: | DC+9V~+30V(Supporting power line voltage range) |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 27*25*25mm |
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| RX Sensitivity: | -90dBm@10%PER |
| Resolution: | 800(H)x480(V) |
| Brightness: | 500cd/m |
| TV System: | PAL/NTSC |
| Power Supply: | DC+9V~+30V |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 132.5x89.5x22.5mm |
Why choose you?
1. We always reply customer’s email within 24-hours.
2. Have Professional QC to test parts before shipment. guarantee
100% good quality of parts before making shipment.
3. All parts with 1 year warranty, All quality certificate are
available, such as FCC CE ROHS, fast lead time, competitive price,
and after-sales service.
4. All parts are with wireless signal system and waterproof for
cameras
Warranty and service:
You(as the end user)get a 12 months guarantee from the date of
purchase.
During the warranty period, if there is damage, repair or other
problems, please contact the point of sale or qualified experts.
The general warranty terms apply to defects in production and
materials. Please return the defective product to the point of
sale.
