IP69K 720P Backup Camera Monitor DVR Record 7 Inch IPS Screen
Backup Camera Monitor 720P Image DVR Record 7 Inch IPS Screen
Waterproof IP69K
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Features:
1. 7 Inch RV 3 cameras 720P digital HD wireless DVR set.
2. With 6 highlight LED Lamp. one rear camera of Warning Light and
two sides of left and right width light, With silicone mold.

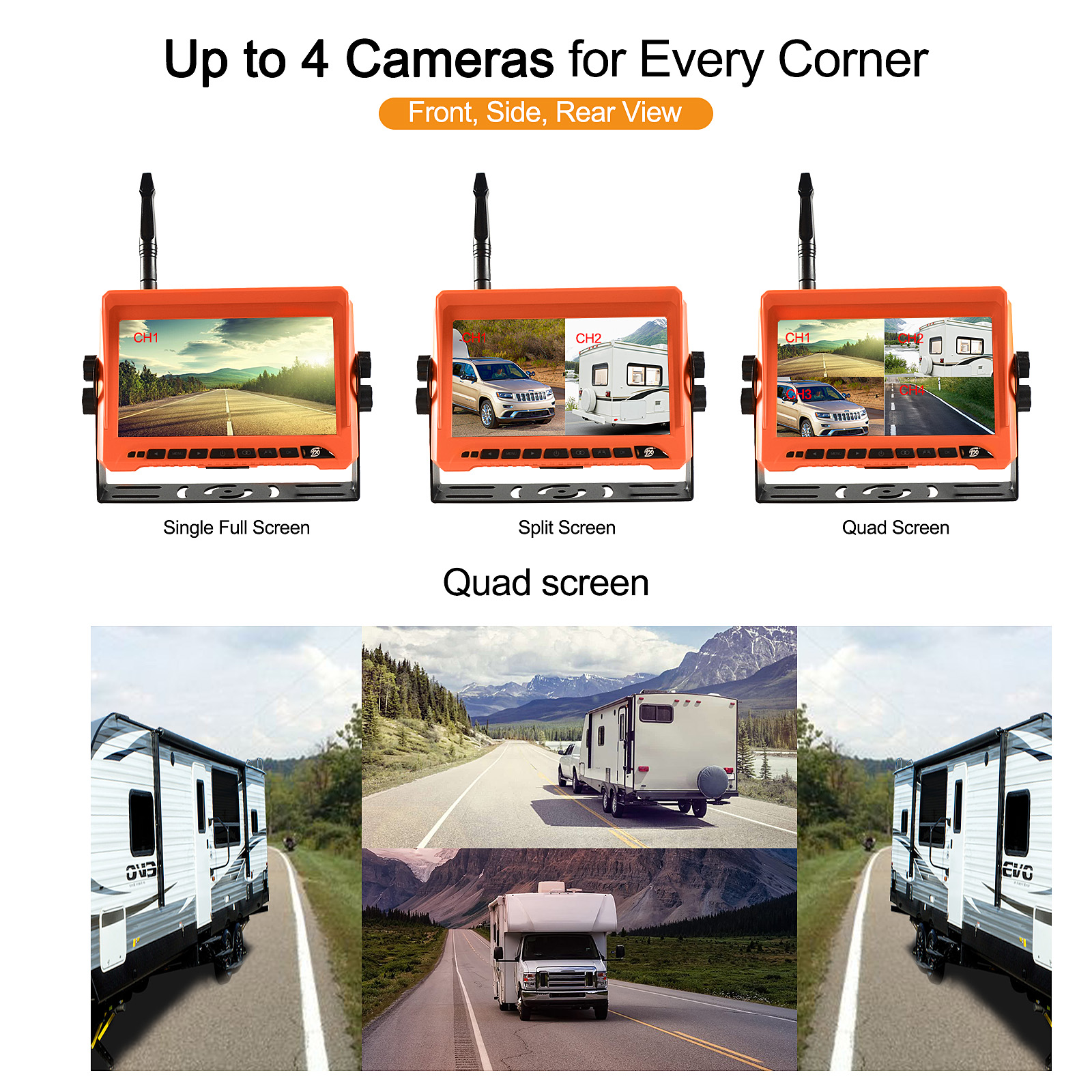

3. Support multi-channel camera display, can support up to 4
channel split screen.
4. 7 inch IPS screen 1024*600 resolution 900cd/ m².
5. 720P H.264 HD DVR Video recording ,support playback online.
6. Self-defining reversing line setting,
7. Wireless signal open distance can reach up to 1650ft(500m),
Transmit power is 26DBM
8. Camera use Structural waterproofing process, waterproof IP69K,
waterproof droplets, anti-fog, dust-proof, scratch-proof.
9. 120 degree full-glass wide angle lens, 200W(1080P) Pixel
Photosensitive element(Sensor), Super strong 11pcs high power
infrared light. IR-CUT smart switch night vision, night vision
distances can reach up to 10m.
10. Unique color on outer appearance,make awareness of brand
improved.
11. Combine content: one monitor with four
cameras(FX909AR+FX301AT+FX302AT+FX303AT)
12. Apply to vehicles: RV, Trailer RV
Application:
The best choices of backup camera system for RV Trailers, Trucks,
Camper, Van, Motor home, 5th wheel, Tractor, Pickup, Semi Box
Truck.
