5 Inch Monitor IP69K Truck Driving Camera Wireless Signal System
Truck Black Color Rearview Driving Camera 5 Inch Monitor Wireless
Signal System
Specification:
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800 x 3(RGB)x 480 |
| Brightness: | 1000 cd/m |
| TV System: | PAL/NTSC |
| Transmitted Power: | 24±1dBm@Max |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Transmitting Distance | 984ft line of sight |
| TF Card | Min.8G Max.128G |
| Power Supply: | DC+12V~+24V |
| Operating temperature: | -20℃~+70℃ |
| Storage temperature: | -30℃~+80℃ |
| Size | 132.5x89.5x22.5mm |
FX909T Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
FX922T Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. First item 5 Inch 720P Dual-channel digital high-definition
wireless DVR set.
2. 5 Inch monitor with HD Resolution 800*480,high Brightness,wide
distance up to 1000cd/M.
3. The FX922T camera power cord use flat wire design,power supply
by connecting the license plate light.
4. FX922T :Smart auto photosensitive and light complement,6pcs
highlight LED light help driving at night.

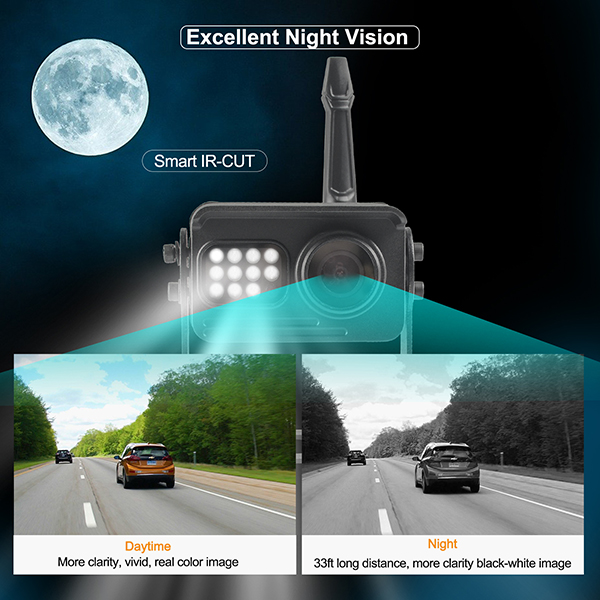

5. FX909T: Super strong 11pcs high power infrared light. IR-CUT
smart switch night vision,distances can reach up to 33ft.
6. Combine content:One monitor with 2 cameras(FX922T+FX909T+FX509R)
Service:
1. Efficient after-sales service, provide solutions for your
problems within 24 hours;
2. OEM&ODM: we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability: we can provide certificates of products such
as CE,FCC,ROHS;
5. Convenient payment methods: Paypal T/T;
Application:
The best choices of backup camera system for Mini car, pickup,
SUV,RV, Trailer RV. Super wireless signal system even driving at
high speed.
