2.4GHz RV Wireless Backup Camera 7 Inch IPS Screen DVR Recording
Wireless Rearview Camera Waterproof 7 Inch IPS Screen DVR Recording
Black Color
Features:
1. 7 Inch RV 4 cameras 720P digital HD wireless DVR set.
2. With 6 highlight LED Lamp. one rear camera of Warning Light and
two sides of left and right width light, With silicone mold.
3. Support multi-channel camera display, can support up to 4
channel split screen.
4. 7 inch IPS screen 1024*600 resolution 900cd/ m².
5. 720P H.264 HD DVR Video recording ,support playback online.
6. Self-defining reversing line setting,
7. Wireless signal open distance can reach up to 1650ft(500m),
Transmit power is 26DB
8. Camera use Structural waterproofing process, waterproof IP69K,
waterproof droplets, anti-fog, dust-proof, scratch-proof.

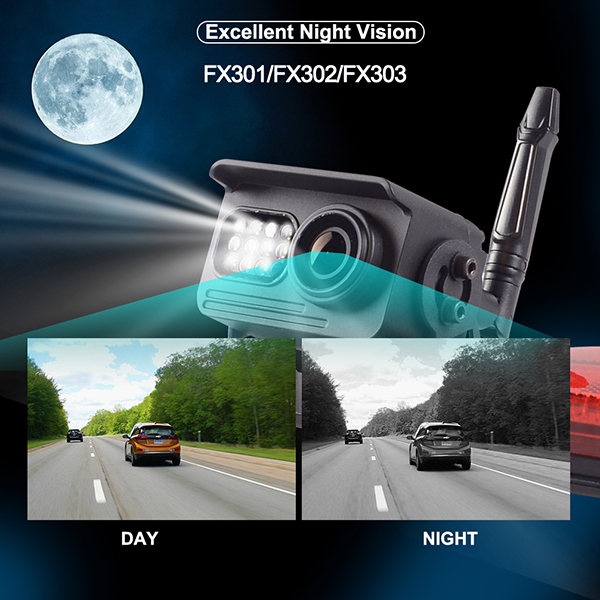

9. 120 degree full-glass wide angle lens, 200W(1080P) Pixel
Photosensitive element(Sensor), Super strong 11pcs high power
infrared light. IR-CUT smart switch night vision, night vision
distances can reach up to 10m.
10. The FX922T camera power cord use flat wire design, and use for
driving wireless rear-view recorder by connecting the license plate
light.(Can install car license plate and RV side door)
11. Combine content: one monitor with four
cameras(FX909R+FX301T+FX302T+FX303T+FX922T)
12. Apply to vehicles: RV,Trailer RV
Button function introduction on Monitor
- Switch left to check if any obstacle in the left side of car.
- Menu/Return Press menu to enter main function and return
- Switch right to check image in the right side of car.
- POWER: Turn ON and OFF the power supply of Monitor
- Switch video window :
- Guide lines ON/OFF Turn on the Guide lines when reversing and turn
off when finishing.
- Confirm/Record Confirm or Record the image you need.
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Cameras(FX301T+FX302T+FX303T)
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
FX922T(smallest camera)
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 8-10m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Notices:
- Please use this product within the specified voltage range.
- Pay attention to the positive poles of the power cord. If the
positive and negative sides are connected in reverse, it may burn
out.
- If smoke or burning smell is detected, please disconnect the power
immediately.
