7 Inch Color Screen HD 1080P Backup Camera Night Vision 2 Channel
Night Vision Backup Camera Monitor 7 Inch Color Screen 2 Channel
1080P HD Camera
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption |
Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |

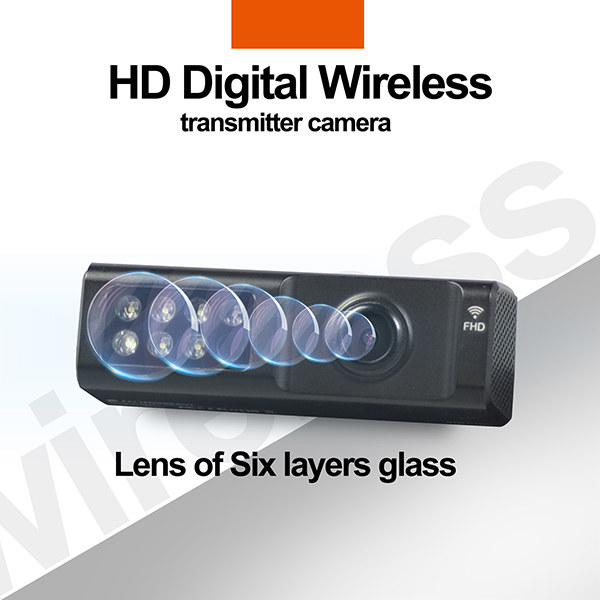

Camera FX303T
| Viewing Angle | 120° |
| Size | 214*59*85mm |
| Image Device | 1/2.7" COMS (HD) |
| Waterproof rating level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C |
FX922T Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 120° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. Support Multi-channel camera display, 4 channel Split screen
max.
2. Monitor equipped with a variety of standard mounting brackets,
apply to different type of vehicles, convenient to install.
3. Monitor's outer appearance use Innovative and unique model, and
the key board use a light-transmitting design to make the touch
more accurate at night.
4. Multiple channels are equipped with independent remote control,
make operation simple and save worry.
5. FX303T camera use Structural waterproofing craft, can improve
quality-control, decrease the Maintenance cost of products.
6. Waterproof IP69K, The Outer-lens is equipped with a
high-definition craft lens, this lens designed to be Waterproof,
anti-fog, dust-proof, scratch-proof.
7. FX303T Camera:Outer-case use creative unique metal model design,
make the products with good looking and more durable.
8. FX922T Camera use flat line designed of cable line, power by
connecting license plate light ,and can be working a long time for
rear recording.
9. FX303T Super strong 11pcs high power infrared light. IR-CUT
smart switch night vision, night vision distances can reach up to
10m.
Notices:
- Please use this product within the specified voltage range.
- Pay attention to the positive poles of the power cord. If the
positive and negative sides are connected in reverse, it may burn
out.
- If smoke or burning smell is detected, please disconnect the power
immediately.
- Please wrap the cable with tape when connecting it.
- Please fix the product firmly before use.
- If you do not understand the installation process, please consult
professionals.
