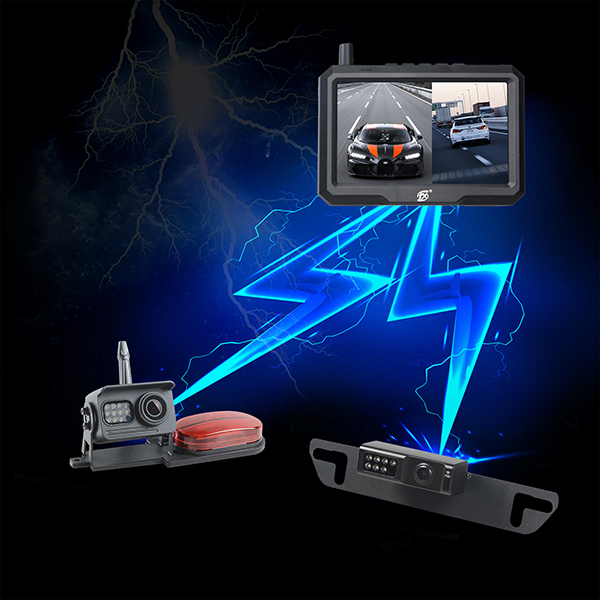

Night Vision Rear view Camera 5 Inch Color Screen HD Wireless
Monitor
Specification:
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800 x 3(RGB)x 480 |
| Brightness: | 1000 cd/m |
| TV System: | PAL/NTSC |
| Transmitted Power: | 24±1dBm@Max |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Transmitting Distance | 984ft line of sight |
| TF Card | Min.8G Max.128G |
| Power Supply: | DC+12V~+24V |
| Operating temperature: | -20℃~+70℃ |
| Storage temperature: | -30℃~+80℃ |
| Size | 132.5x89.5x22.5mm |
Camera (FX303T)
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Camera(FX922T)
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. HD Resolution of 5 inch monitor is 800*480,built-in
DVR,Brightness: 1000cd/M.
2. 720P H.264 HD DVR Recording ,support playback online.size is
132.5*89.5*22.5mm.

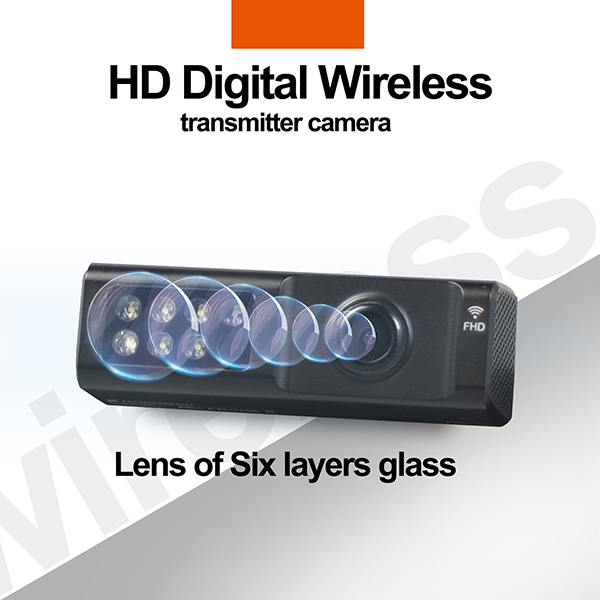

3. FX922T:Built-in Digital HD 2.4GHz wireless transmitter and
antenna.
4. Brand-new and Unique product appearance design for FX922T
camera.
5. FX922T:the power cord use the flat wire method, make
installation simple and convenient and save space.
6. High Definition Lens,200W Pixel. 1/2.7’’COMS sensor, more
clearly on observation.
7. View angle 160°,big angle, Large wide-angle show view of wider
field. more safer when reversing.
8. Monitor come up with different bracket,make the installation
more inconveniont.
9.Application:mini car, pickup, SUV,RV, Trailer RV
OEM:
Support your creative idea to develop new product(Product
appearance design, functional design, Logo customization, packing
customization etc.)
We provide 12 months quality guarantee period for each products.
We offer one year warranty on all products purchased from us. If
your item has any warranty issue please contact us for a satisfying
solution.
