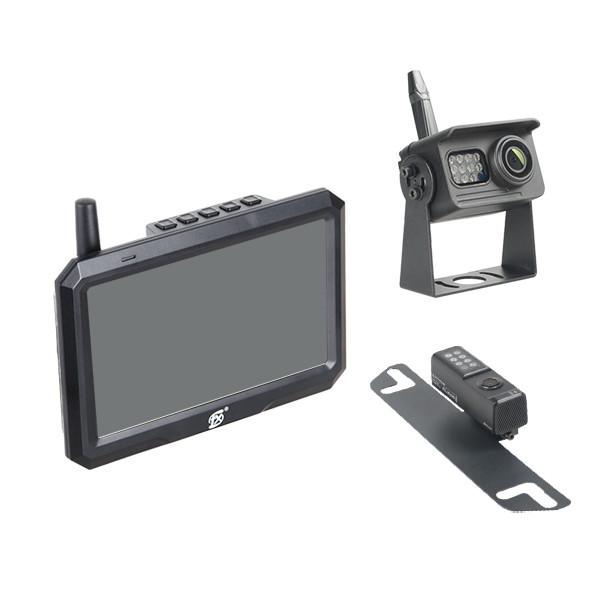

IP69K DVR Reverse Rear View Night Vision Camera 5 Inch Color
Monitor
DVR Reverse Rear View Night Vision Camera Waterproof IP69K 5 Inch
Color Monitor
Specification:
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800 x 3(RGB)x 480 |
| Brightness: | 1000 cd/m |
| TV System: | PAL/NTSC |
| Transmitted Power: | 24±1dBm@Max |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Transmitting Distance | 984ft line of sight |
| TF Card | Min.8G Max.128G |
| Power Supply: | DC+12V~+24V |
| Operating temperature: | -20℃~+70℃ |
| Storage temperature: | -30℃~+80℃ |
| Size | 132.5x89.5x22.5mm |
FX909T Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Minimum Illumination | 0Lux |
FX922T Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. First item 5 Inch 720P Dual-channel digital high-definition
wireless DVR set.
2. Resolution: 800*480 Brightness:1000cd/M.make night vision more
clarity.
3. 720P H.264 HD DVR Recording,support playback online.
4. Support split two-way display and video on the same screen at
the same time.
5. Recommend to install on front and back side of vehicle,if it's
RV,then can install on the side door of RV,
adjustable reversing line,help to backup properly.
6. IP69K Waterproof, 120-degree Angle Lens night vision
camera,built-with 1080P high definition transmitter.
7. The FX922T camera power cord use flat wire design, and use for
driving wireless rear-view recorder by connecting the license plate
light.
8. Apply to vehicles:mini car, pickup, SUV,RV, Trailer RV.
Why choose you?
1. We always reply customer’s email within 24-hours.
2. Have Professional QC to test parts before shipment. guarantee
100% good quality of parts before making shipment.
3. All parts with 1 year warranty, All quality certificate are
available, such as FCC CE ROHS, fast lead time, competitive price,
and after-sales service.
4. All parts are with wireless signal system and waterproof for
cameras.
