7" Color Screen FHSS HD Car Backup Camera Truck Monitoring System
7" Color Screen Wireless Night Vision Backup Camera Truck Rearview
Monitoring
Product Features:
1. 7 Inch RV 720P digital HD wireless DVR set.
2. Support multi-channel camera display, can support up to 4
channel split screen.
3. 7 inch IPS screen 1024*600 resolution 900cd/ m².
4. 720P H.264 HD DVR Video recording ,support playback online.
5. Self-defining reversing line setting,
6. Wireless signal open distance can reach up to 1650ft(500m),
Transmit power is 26DBM
7. Camera use Structural waterproofing process, waterproof IP69K,
waterproof droplets, anti-fog, dust-proof, scratch-proof.
8. 120 degree full-glass wide angle lens, 200W(1080P) Pixel
Photosensitive element(Sensor), Super strong 11pcs high power
infrared light. IR-CUT smart switch night vision, night vision
distances can reach up to 10m.
9. Orange color, unique appearance color, which improves brand
recognition
10. Combine content: one monitor with one camera(FX909AR+FX909AT)
11. Apply to vehicles: RV, Trailer RV
Specification
Monitor
| Screen Size | 7 inch |
| Video Recording | Yes |
| Resolution | 1024 x 3(RGB) x 600 |
| SD Card | Max.128G |
| Video Format | MP4 |
| Adjustable Parking Line | Yes |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Split Mode | Yes |
| Power Supply | DC 12-24V |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Notices:
- Please use this product within the specified voltage range.
- Pay attention to the positive poles of the power cord. If the
positive and negative sides are connected in reverse, it may burn
out.
- If smoke or burning smell is detected, please disconnect the power
immediately.
- Please wrap the cable with tape when connecting it.
- Please fix the product firmly before use.
- If you do not understand the installation process, please consult
professionals.
Service:
1. Efficient after-sales service,provide solutions for your
problems within 24 hours;
2. OEM&ODM:we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability,we can provide certificates of products such
as CE,FCC,ROHS;
Applications:

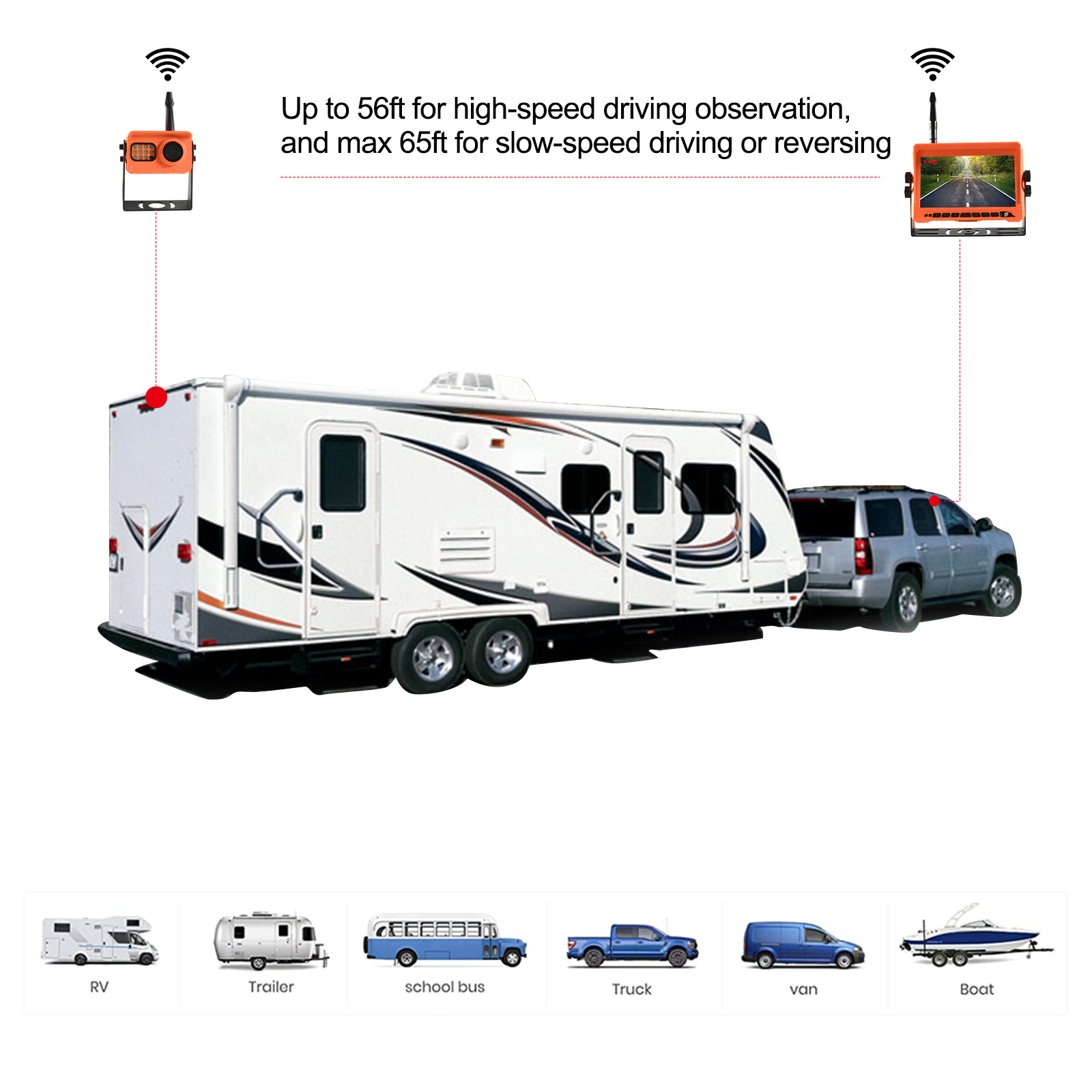

Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels
IR Night Vision and so on.
FAQ
Q1.What is the MOQ?
A: 1~100 pieces according to the model.
Q2. What is the payment terms?
A: T/T,L/C at sight
Q3. How to charge the freight?
A: The quotation usually doesn’t include the freight; customer can
choose freight prepaid or freight collect.
Q4.What is the type of shipping?
A: By express, by air and by sea(FEDEX,DHL,TNT,UPS)
Q5: What is the trade terms?
A: FOB Shenzhen, C&F,EXW.
