10" Touch Screen Wireless Backup Camera Monitor AHD Receiver
Wireless Backup Camera Monitor 10" Touch Screen Support 2 Channel
AHD Receiver
Specification:
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
H10 Rear View Mirror
| Built-in image sensor | 2 Mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080,S/30 frame |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | 128GB Micro SD Card[TF] |
| Standard Voltage | DC5V |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Features:
1. First item 10 Inch AHD digital wireless streaming rear view
mirror DVR
2. Rear view mirror Support reversing image, nothing important can
escape from rearview mirror,Storage Temperature -20℃-80℃.
3. Support front and back 1080P dual recording,rear and front image
recording.
4. Backup camera will be able to see up to 33ft in complete
darkness with IR CUT,through AHD receiver,can send 1080p image to
rear view mirror.

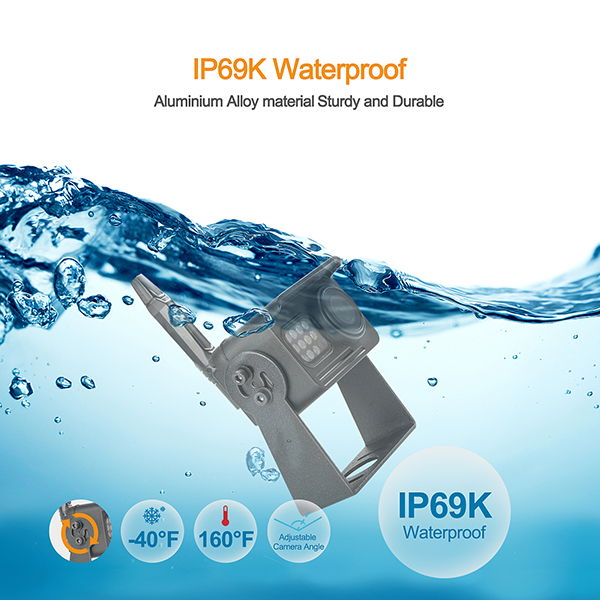

5. Waterproof IP69K of camera, outer-lens is equipped with a
high-definition craft lens, this lens designed to be Waterproof,
anti-fog, dust-proof, scratch-proof.No need to worry driving in a
rainy day,also can bear low temperature from -20℃--70℃.
6. Car charger receiver function: Trigger the rearview mirror
reversing line. Spin, Pair, Power on/off, N/P Switch, Factory
resetting .
7. Product context : FX909T+FX901R+H10
8. Apply to Vehicles: Trucks, Van, Agricultural vehicles,
Construction vehicles, RV, RV Trailer
