Truck Rearview HD Backup Camera Monitor 7" DVR Monitoring System
Truck Rearview HD Wireless Night Vision Backup Camera 7" DVR
Monitoring System
Discriptions:

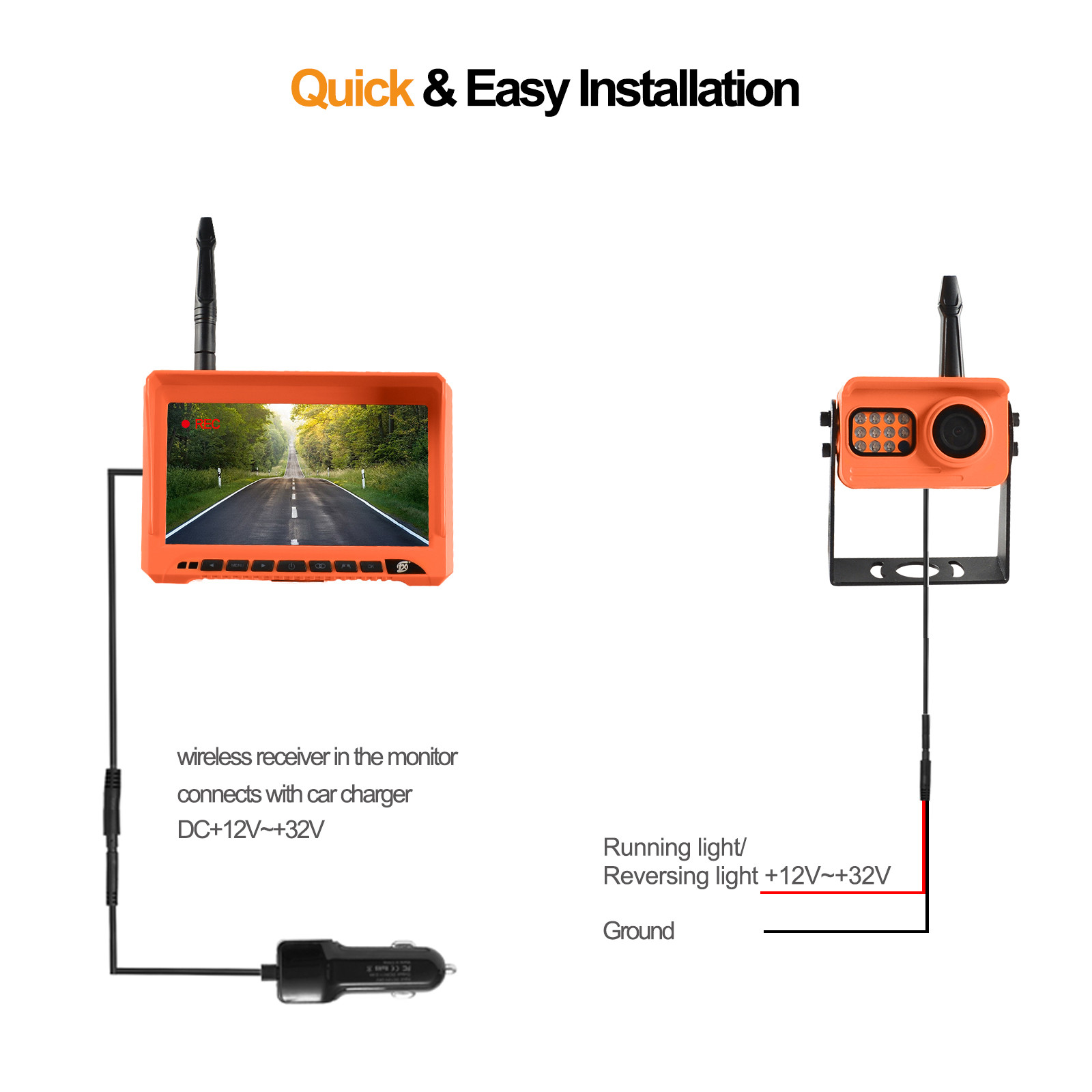

Digital Wireless Whaterproof Night Vision Backup Camera System can
be used in various vehicles through simple
installation without wiring, and it can be matched with the vehicle
HD wireless monitor to form a
perfect vehicle monitoring system solution.
Quality Assurance:
1. Waterproof test
2. Temperature test
3. Shockproof test
4. Aging test
Product Features:
1. 7 inch RV 720P digital high-definition wireless DVR set
2. Support multi-channel camera display, can support up to 4
channel split screen
3. 7 inch IPS screen 1024*600 resolution 900cd/ m²,HD highlight to
make night vision more easy observation and display.
4. 720P H.264 HD DVR Video recording ,support playback online
5. Self-defining reversing line setting,make the sense of distance
approach reality.
6. Wireless signal open distance can reach up to 1650ft(500m),
Transmit power is 26DBM
7. Camera use Structural waterproofing process, waterproof IP69K,
waterproof droplets, anti-fog, dust-proof, scratch-proof.
8. 120 degree full-glass wide angle lens, 200W(1080P) Pixel
Photosensitive element(Sensor), Super strong 11pcs high power
infrared light. IR-CUT smart switch night vision, night vision
distances can reach up to 10m.
9. Monitor's Outer appearance use Innovative and unique model, and
the key board use a light-transmitting design to make the touch
more accurate at night.
10. Orange color, unique appearance color, which improves brand
recognition.
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Applications:
Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels
IR Night Vision and so on.
FAQ
Commercial CE FCC ROHS Certificate Outdoor IP69K Waterproof
Q1.What is the MOQ?
A: 1~100 pieces according to the model.
Q2. What is the payment terms?
A: T/T,L/C at sight
Q3. What is the lead time?
A: Usually 3~7 days for sample order, for bulk orders, it depends
on the order quantity.
Q4.What is the type of shipping?
A: By express, by air and by sea(FEDEX,DHL,TNT,UPS)
Q5. What is the lead time?
A: Usually 3~7 days for sample order, for bulk orders, it depends
on the order quantity.
