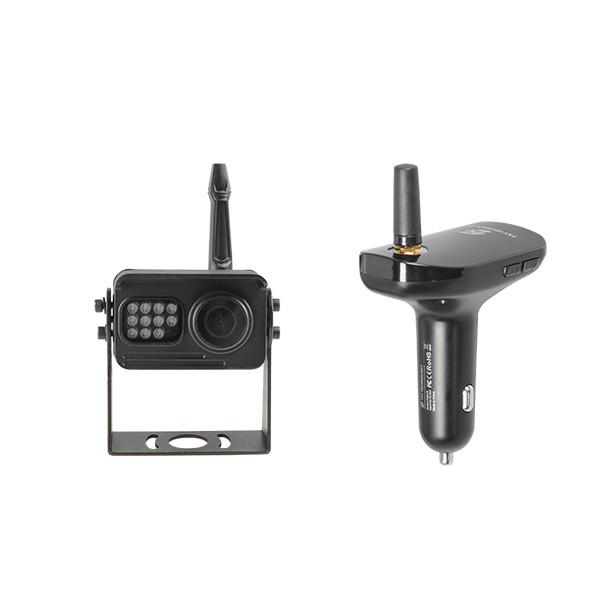

Waterproof IP69K HD Rear View Camera 1080P AHD Car Charger Receiver
HD Reverse Backup Rear View Camera 1080P Transmitter AHD
Car-Charger Receiver
Specification:
Camera
Viewing Angle | 120° |
Size | 78*64*50mm |
Image Device | 1/2.7" COMS (HD) |
Waterproof rating level | IP69k |
Transmission Distance(barrier free) | 1650ft |
Night Vision Distance | 33ft |
Latency | less than 200ms |
Power Supply | DC 12-32V |
Power Consumption | 150mA/12V |
IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
Operating Temperature | -20°C~+70°C |
Storage Temperature | -30°C~+80°C |
Receiver
Operation Frequency | 2.4GHz--2.4835GHz |
Transmission Power | 23dB |
RX Sensitivity | -85dB |
RF Bit Rate | 12Mbps |
Spread Spectrum | FHSS |
Video output format | 1080p |
Coding Decompression method | H.264 |
Power Supply | DC 10-30V |
Operating Temperature | -20℃--70℃,RH85% MAX |
Storage Temperature | -30℃--80℃,RH85% MAX |
Size | 92x68x43mm |
Weight | 185g |
Features:
1. First item AHD digital wireless car-charger design rear
pull(Supporting streaming media rearview mirror DVR use)
2. Camera built-in antenna with 1080P resolution.can send HD image
to monitor via strong wireless signal.
3. Camera use Structural waterproofing process, waterproof IP69K,
Transmit power is 26DBM,Up to 1650 feet wireless line of sight
wireless reception range in open spaces.
4. Car charger integrated design of AHD receiver,button function:
Trigger the rearview mirror reversing line. Spin, Pair, Power
on/off, N/P Switch, Factory resetting
5. USB 5V Power supply output(Load design) with 3.5M data line,
apply to different vehicles for wiring.
6. Apply to Vehicles: Trucks, Van, Agricultural vehicles,
Construction vehicles, RV, RV Trailer
