720P H.264 HD RV Wireless Backup Camera Kit With 7 Inch Monitor
Orange Color
Product Features:
1. 7 inch RV 720P digital high-definition wireless DVR set.
2. Built-in 2.4GHz~wireless receiver to screen, output to
camera,can support 4 channels max simultaneously.
3. 7 inch IPS screen 1024*600 resolution 900cd/ m²,HD highlight to
make night vision more easy observation and display.
4. Self-defining reversing line setting,make the sense of distance
approach reality.
5. Frequency range: 2.4GHz to 2.4835MHz,super wireless signal can
reach up to 1650ft at open spaces.
6. Build-in DVR recording: Holding up to 16G/32G/64G/128G SD
cards,support the video playback online.

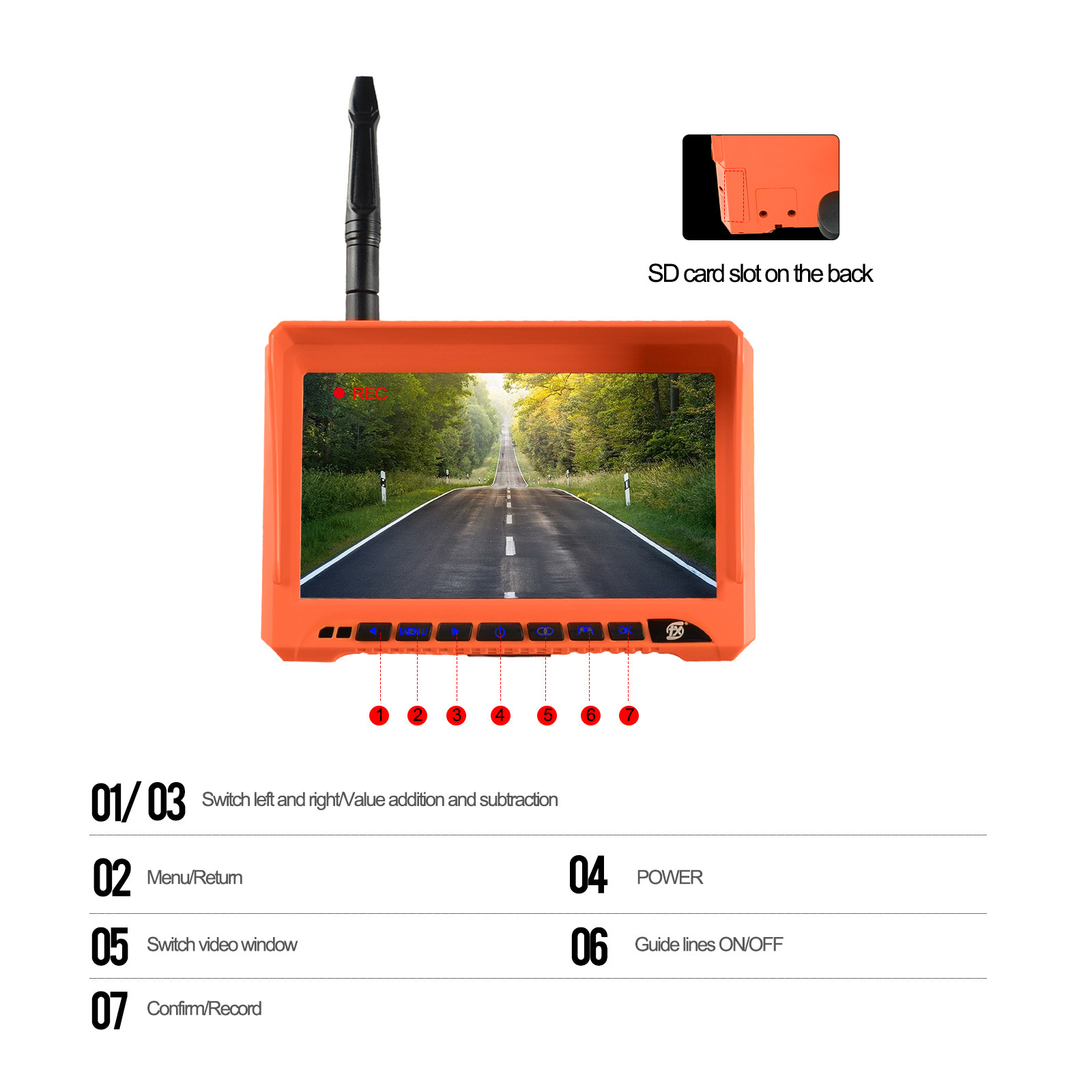

7. Monitor's Outer appearance use Innovative and unique model, and
the key board use a light-transmitting design to make the touch
more accurate at night.
8. Orange color, unique appearance color, which can improves brand
recognition.
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 220g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Service:
1. Efficient after-sales service,provide solutions for your
problems within 24 hours;
2. OEM&ODM:we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability,we can provide certificates of products such
as CE,FCC,ROHS;
5. Convenient payment methods: Paypal,T/T;
Applications:
Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels
IR Night Vision and so on.
FAQ
Commercial CE FCC ROHS Certificate Outdoor IP69K Waterproof
Q1.What is the MOQ?
A: 1~100 pieces according to the model.
Q2. What is the payment terms?
A: T/T,L/C at sight
Q3. What is the warranty time?
A:Usually 12 months from the date of purchase, it also depends on
the type of the products.
Q4. What is the lead time?
A: Usually 3~7 days for sample order, for bulk orders, it depends
on the order quantity.
